OHS-3003 Stainless steel housing with wiper “medium/large size”
- IP67 Stainless steel camera housing.
- Internal length 456 / 556mm
- Usable space area 96x96mm
- Made of AIS316 stainless steel.
- Options: Wiper, heater, brackets
Description
Discontinued

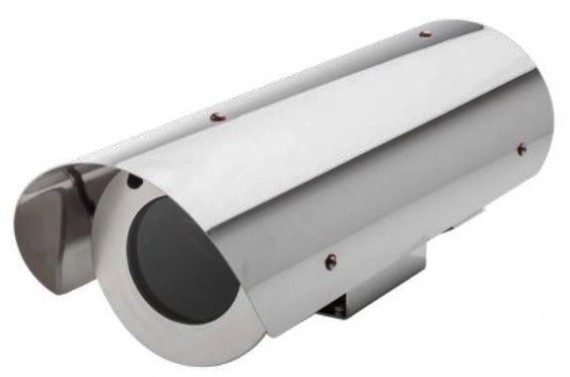

The OHS-3003 stainless steel housing with wiper is a medium / large sized camera housing. The housing is made by high quality stainless steel grade 316.
This outdoor housing is IP67 rated and therefore are highly suitable for outdoor environment.
AIS-316 is the ultimate protective material for a camera housing located in protect against salt water and other harsh environment.
The camera housing can be equipped with window heater, wiper and active heater.
Specifications for OHS-3003 housing with wiper |
|
|---|---|
| Material | Stainless steel AIS316 |
| IP rating | IP67 |
| Body length (with sunshield) | 651mm / 751mm |
| Internal Size HxWxL | 96x96x456mm / 96x96x556mm |
| Weight | 9-13 kg |
| Window heater | 15W PTC (self regulating) |
| Wiper (option) | Self parking |
| Voltage (wiper, Heater) | AC230V, AC110V, AC24V, DC24V |
| Cable entry | Cable glands |
| Temperture | -20° +60° |
Options
-
Wiper
The stainless steel housing can be delivered with a built-in wiper option.
-
Wall bracket
Stainless steel wall brackets available in different sizes to fit the length of the housing.
-
Pole mount bracket
Pole bracket as base for wall bracket made of stainless steel.
-
Corner mount bracket
Corner mount bracket as base for wall bracket made of stainless steel.
-
Color
The stainless steel camera housing can be delivered painted in a custom color.
-
Active heater
Active heater with fan to keep housing temperature at a thermostatic setting.
