OHS-3005 Stainless steel camera housing with wiper “very large size”

  • IP67 Stainless steel camera housing.
  • Internal length 600 / 700mm
  • Usable space area 177x177mm
  • Made of AIS316 stainless steel.
  • Options: Wiper, heater, brackets

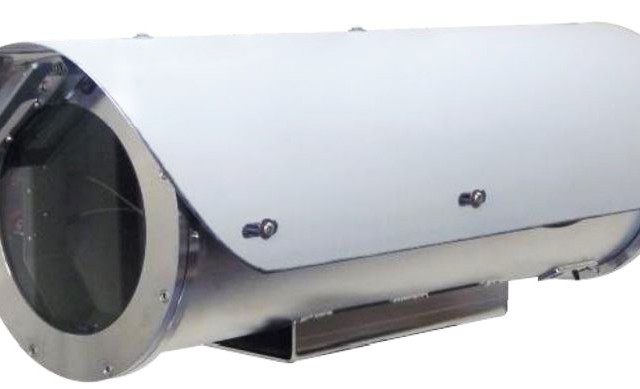

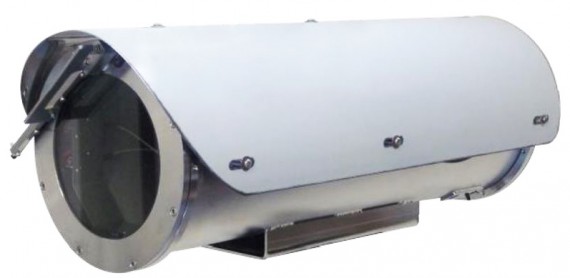

The OHS-3005 stainless steel camera housing with wiper is a very large camera housing made of high quality stainless steel grade 316.
This outdoor housing is IP67 rated and therefore are highly suitable for outdoor environment.

AIS-316 is the ultimate protective material for a camera housing located in protect against salt water and other harsh environment.

The camera housing can be equipped with window heater, wiper and active heater.

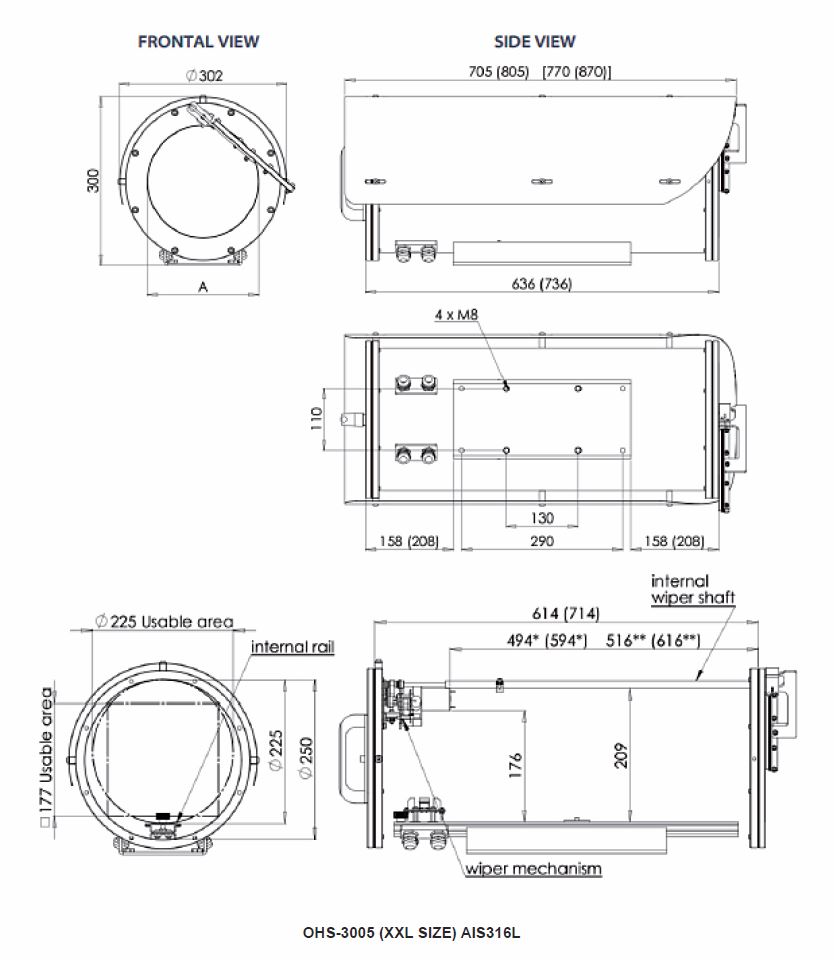

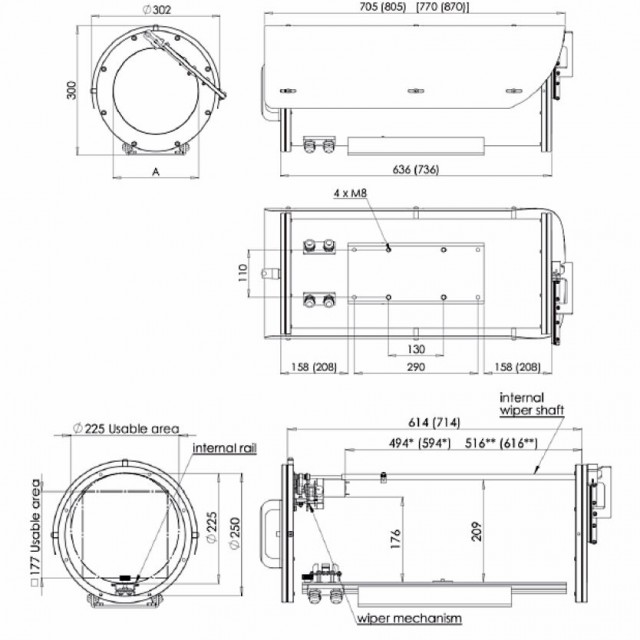

Specifications for OHS-3005 camera housing with wiper

Material Stainless steel AIS316
IP rating IP67
Body length (with sunshield) 806mm / 871mm
Internal Size HxWxL 177x177x600mm / 177x177x700mm
Weight 22-28 kg
Window heater 25W PTC (self regulating)
Wiper (option) Self parking
 Voltage (wiper, Heater)  AC230V, AC110V, AC24V, DC24V
Cable entry Cable glands
Temperture -20° +60°


  • Wiper

    The stainless steel housing can be delivered with a built-in wiper option.

  • Wall bracket

    Stainless steel wall brackets available in different sizes to fit the length of the housing.

  • Pole mount bracket

    Pole bracket as base for wall bracket made of stainless steel.

  • Corner mount bracket

    Corner mount bracket as base for wall bracket made of stainless steel.

  • Custom coating color

    The stainless steel camera housing can be delivered painted in a custom color.

  • Active heater

    Active heater with fan to keep housing temperature at a thermostatic setting.
