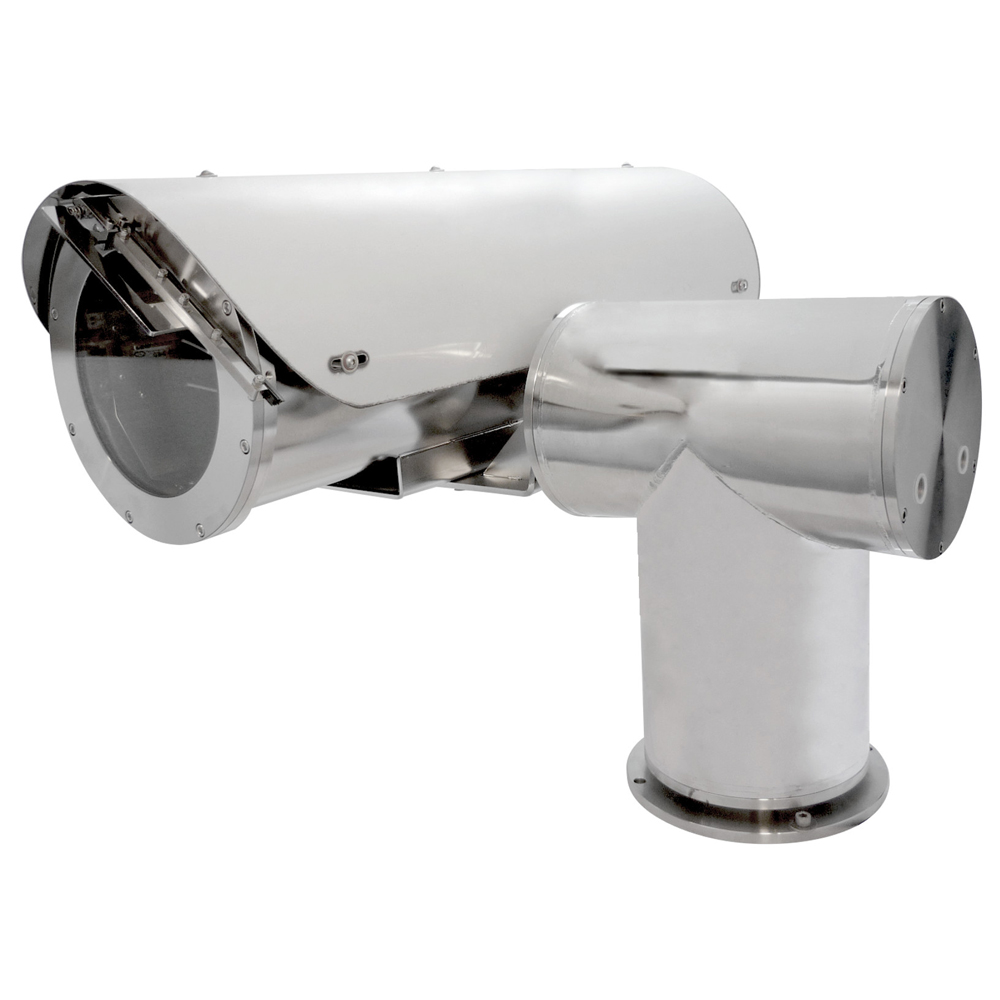

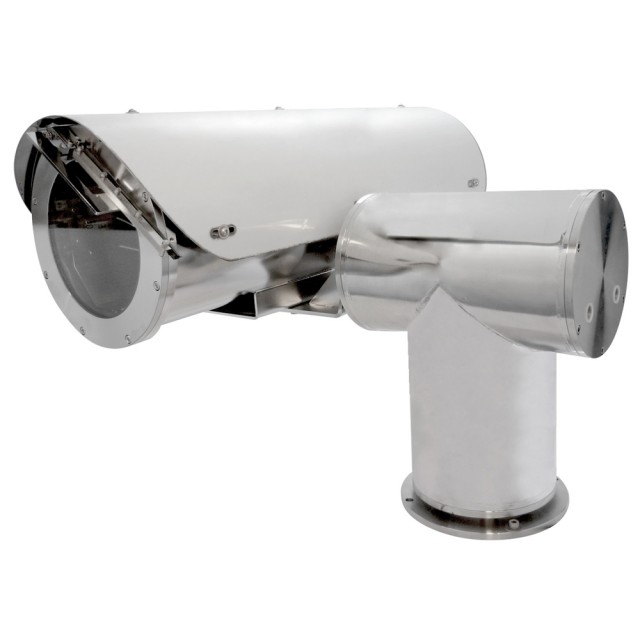

PT-1380 stainless pan tilt “50 kg load” (RS-485 – DC motor)

  • Load capacity up to 50 kg
  • Made of Stainless steel 316
  • Heavy duty design
  • RS-485 Pelco D
  • Motorized lens control

Description

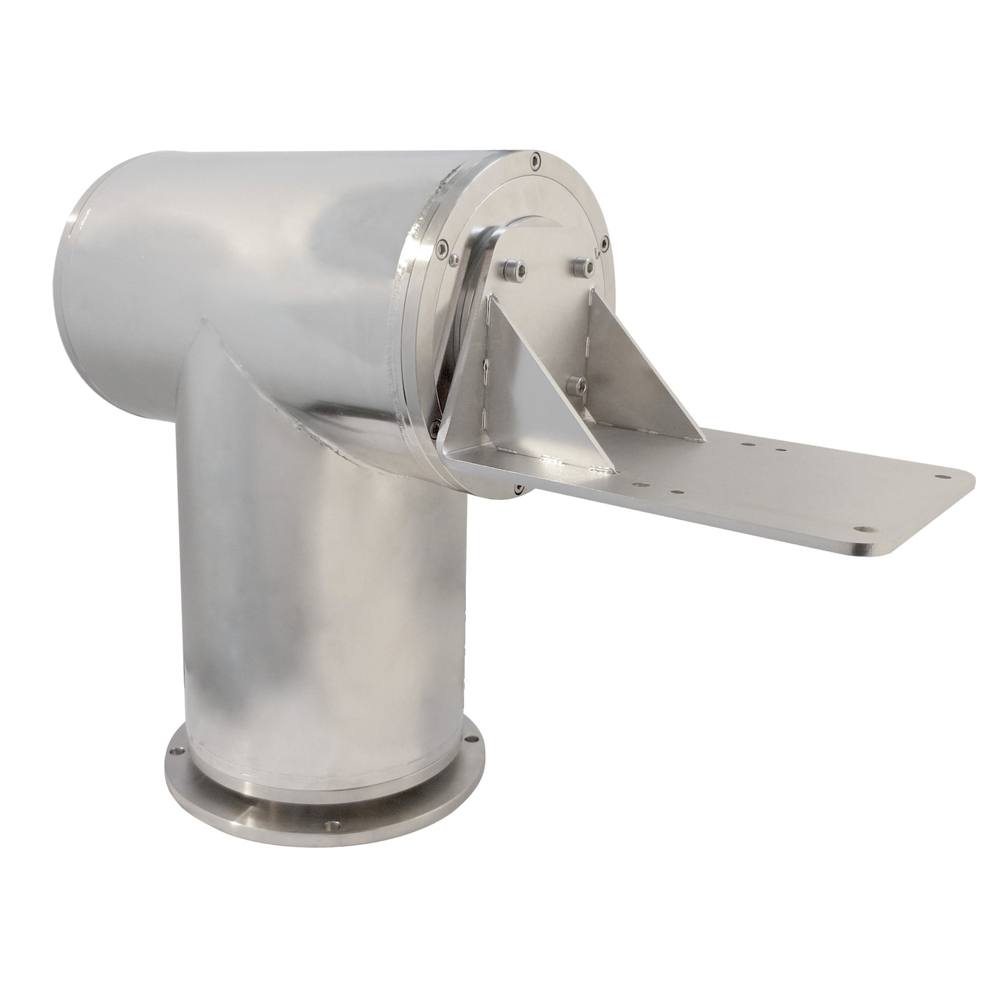

The PT-1380 pan and tilt is a very large sized stainless steel pan and tilt with a high load capacity of up to 50 kg. Advanced RS-485 control features, variable speed, presets, motorized lens control.  The pan and tilt is made of stainless steel grade 316.

This stainless steel pan tilt is designed with DC motors and has a high load capacity and a strong hold capacity.

Specifications for PT-1380 stainless steel pan and tilt

Material Stainless steel 316
IP rating IP66/67
Load capacity Side mount 50 kg

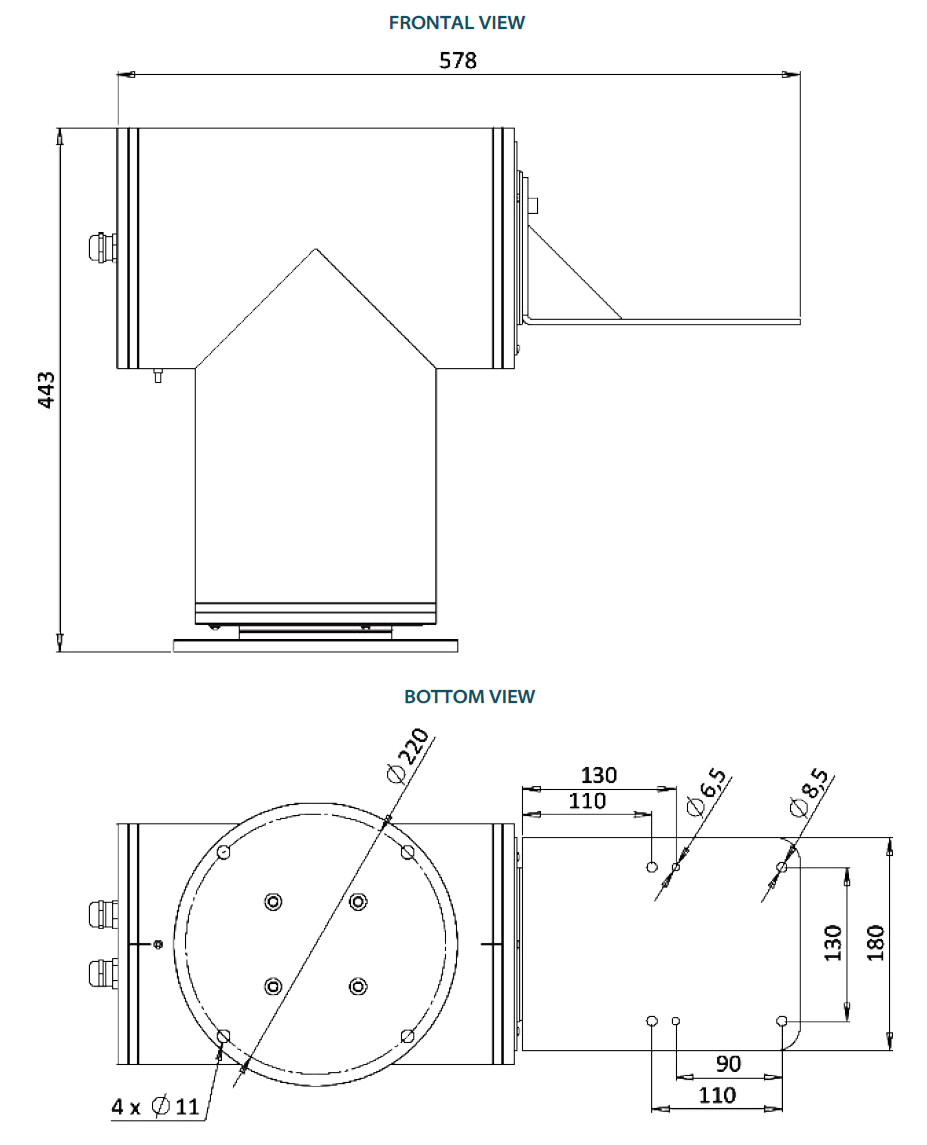

Size (LxHxW) 578 x 443 x 180 mm
Weight 35 kg
Pan angle 0-359°
Tilt angle -90° to +90°
Pan speed 0 – 8°/sec
Tilt speed 0 – 3°/sec
Absolute position support  No
Electric position accuracy  NA
Mechanical lash  <0,1°
Presets Yes
Preset accuracy <0,5°
Motor type DC motor
Gear type
End-stop adjustable NA
Interface  RS-485
Baud rate 2400, 4800, 9600, 19200 bps, N,8,1
Protocol Pelco D
Address 1-256
Temperature range -20°C  +60°C
Voltage supply  24 or 230 VAC
Power consumption  80W
 Motorized lens control  Yes (4 wire lens control and presets voltages)
 Aux control  NA
 Video cable  Yes (HDSDI cable optional)
 Network cable  Optionally

Options

  • Wiring and connectors

    Custom wiring and connectors can be ordered, HDSDI or Network cable can be installed optionally.
