PT-2002 pan tilt “15 kg load” (DISCONTINUED)

Load capacity up to 15 kg
RS-485 Pelco D serial control
Made of Aluminum with stainless fittings
Advanced positioning support
AUX, extender and motorized lens control

Description

This product has been discontinued.

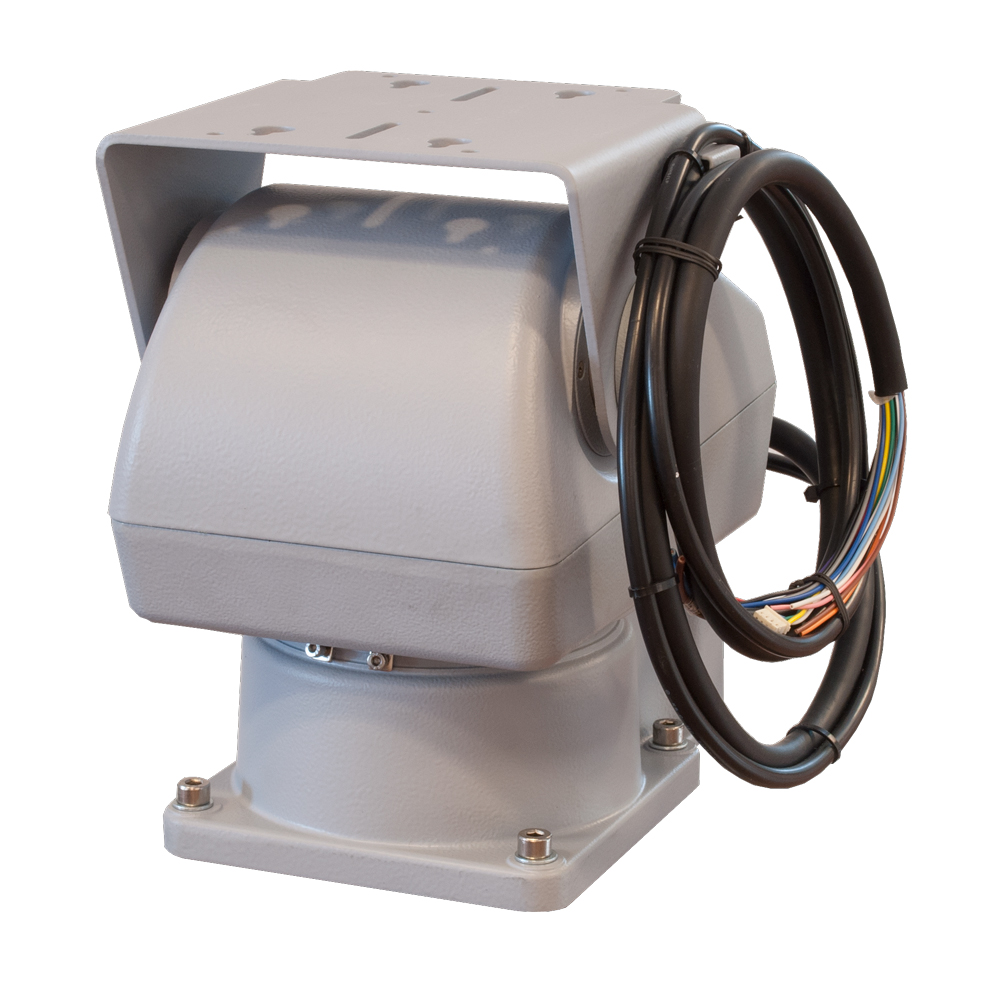

The PT-2002 pan tilt is a medium sized pan tilt positioner with a load capacity of up to 15 kg. Many advanced control features, absolute position, Pelco extended protocol, variable speed, presets, motorized lens and AUX control. The pan tilt is made of aluminum and all fittings are made of stainless steel.

The pan tilt is designed with DC motors and worm gears, a combination to get a high load capacity and a strong hold capacity.
Many options are available and the pan tilt can be custom made to your specific application.

Specifications for PT-2002 pan tilt positioner
Material	Aluminum
IP rating	IP66
Load capacity	Top mount 15 kg

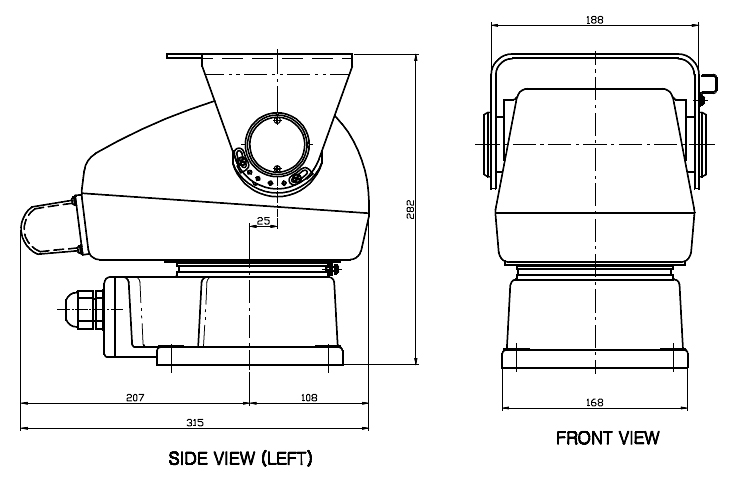

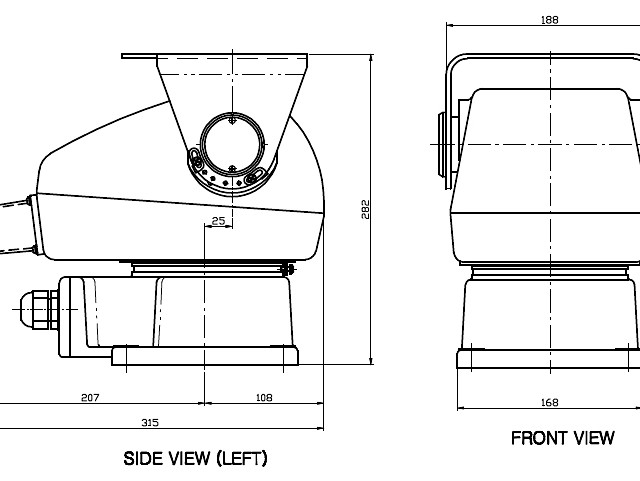

Size (LxHxW)	316 x 283 x 188 mm
Weight	10 kg

Pan angle	0-355°
Tilt angle	-50° to +25°
Pan speed	0,1 – 25°/sec
Tilt speed	0,1 – 12°/sec

Absolute position support	Yes
Electric position accuracy	Pan 0,01089° Tilt 0,005005
Mechanical lash	<0,3°
Presets	100 presets
Preset accuracy	NA

Motor type	DC motor
Gear type	Worm gear
End-stop adjustable	Externally by mechanical end-stops


Interface	RS-485
Baud rate	2400, 4800, 9600, 19200 bps, N,8,1
Protocol	Pelco D
Address	1-256
Temperature range	-10°C +60°C-(-25°C +60°C with optional heater)
Voltage supply	24 VDC
Power consumption	Standby 0,2A, No load 0,6A, Max load 2A

Motorized lens control	Yes (4 wire lens control and presets voltages
Aux control	Yes (5 aux relays and 1 motorized extender control output)
Video cable	Yes (HDSDI cable optional)
Network cable	Optionally

Options

Wiring and connectors

Custom wiring and connectors can be ordered, HDSDI or Network cable can be installed optionally.
Tripod

Heavy duty tripod made specifically for the PT-3002 pan tilt
Heater

Internal heater to extend the temperture range to -25°C
