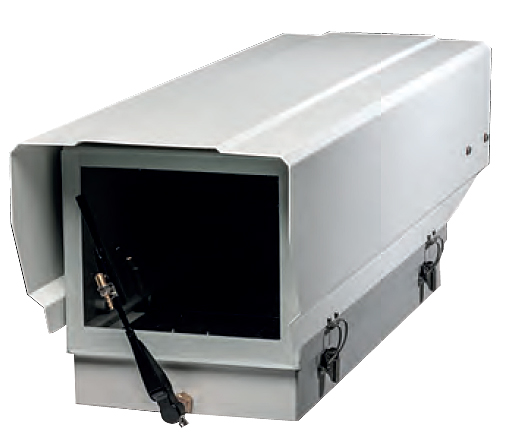

OHS-1025VS large size camera housing with cooling
- IP66 Camera housing with cooling
- Internal length 505mm
- Made of Aluminum or stainless steel.
- Water nozzle to connect washer system.
- Options: Wiper, washer and fan
Description
The OHS-1025VS cooled camera housing with fan cooled sunshield is a large sized camera housing with cooling designed for use in hot areas. This housing is suitable for camera and a lens up to approx focal length 500mm. The housing is made of aluminum and the fittings are made in stainless steel. This outdoor housing is IP66 rated and therefore are highly suitable for outdoor hot environment.
The fan blow the sun peak high temperatures away from the below of the sunshield so the excessive heat do not enter the housing.
Each housing are made to order, therefore the housing can be made to the customers specifications.
Specifications for OHS-1025VS cooled camera housing |
|
|---|---|
| Material | Aluminum |
| IP rating | IP66 |
| External Size HxWxL | 242x230x760mm |
| Internal Size HxWxL | 178x167x505mm |
| Weight Aluminum | 6,3 kg |
| Weight wiper (option) | 0,5 kg |
| Window heater | 30W PTC (self regulating) |
| Wiper (option) | Self parking |
| Voltage (wiper, Heater) | AC230V, AC24V, DC12V, DC24V |
| Voltage (Fan) | DC12V, DC24V |
| Cable entry | Two 20mm glands, one 25mm blinded hole |
| Color | Grey/white |
| Temperture | -25° +55° |
Options
-
Wiper
The housing can be delivered with a built-in internally mounted wiper motor and external wiper arm. The wiper is activated by supplying voltage to the motor and when turned off the wiper will self park in the side of the window, spray nozzle available.
-
Double sunshield
The housing can be delivered with a double sunshield as an extra isolation to avoid overheating from the sun rays. The sunshield is made as a clip on type to ease the cleaning and service of the camera housing.
-
Active heater
The housing can be delivered with a built-in camera housing heater, not the standard window heater, but a heater element that heat up the housing to the temperature selected on the thermostat. The heat from the element is ventilated around the housing with a fan.
-
Internal fan
The housing can be delivered with a built-in fan to remove hot spots in the housing generated by camera heat or other sources of heat. The fan will equal the heat around the housing.
-
Color
The housing can be delivered in many colors and coatings. Color of the housing can be important if the housing should blend in the original design of a building, a ship or other applications. The color can also be a factor if the housing should be very visible to work preventive. For marine or other harsh environments the housing can be delivered with a very strong coating to extent the lifetime of the camera housing
-
Glass
The housing can be delivered with vandal proof glass. Specialty glass with wide spectral response available (ex. SWIR)
