PH-860 Pressurized camera housing with wiper

  • IP68 Pressurized camera housing.
  • Internal length 430mm
  • Usable space area 90x90mm
  • Made of AIS316 stainless steel.
  • Options: Wiper, heater, brackets

Description

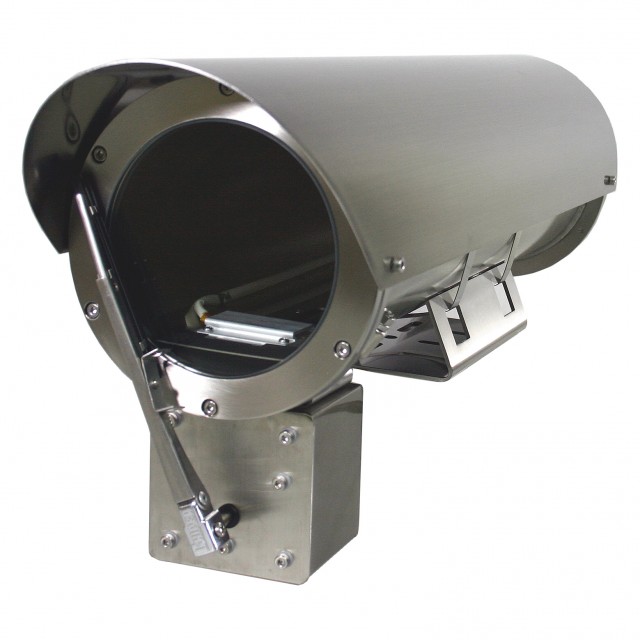

The PH-860 stainless steel pressurized camera housing with wiper are made of high quality stainless steel grade 316.
This outdoor housing is IP68 rated and therefore are highly suitable for outdoor environment to protect against salt water and other harsh environment. The housing are equipped with inlet and outlet valves to be able to pressurize the housing with nitrogen.
By pressurizing the camera housing with nitrogen, a dry, over pressured and stable enviroment is obtained.

The nitrogen pressurized camera housing can be equipped with window heater, wiper and active heater.

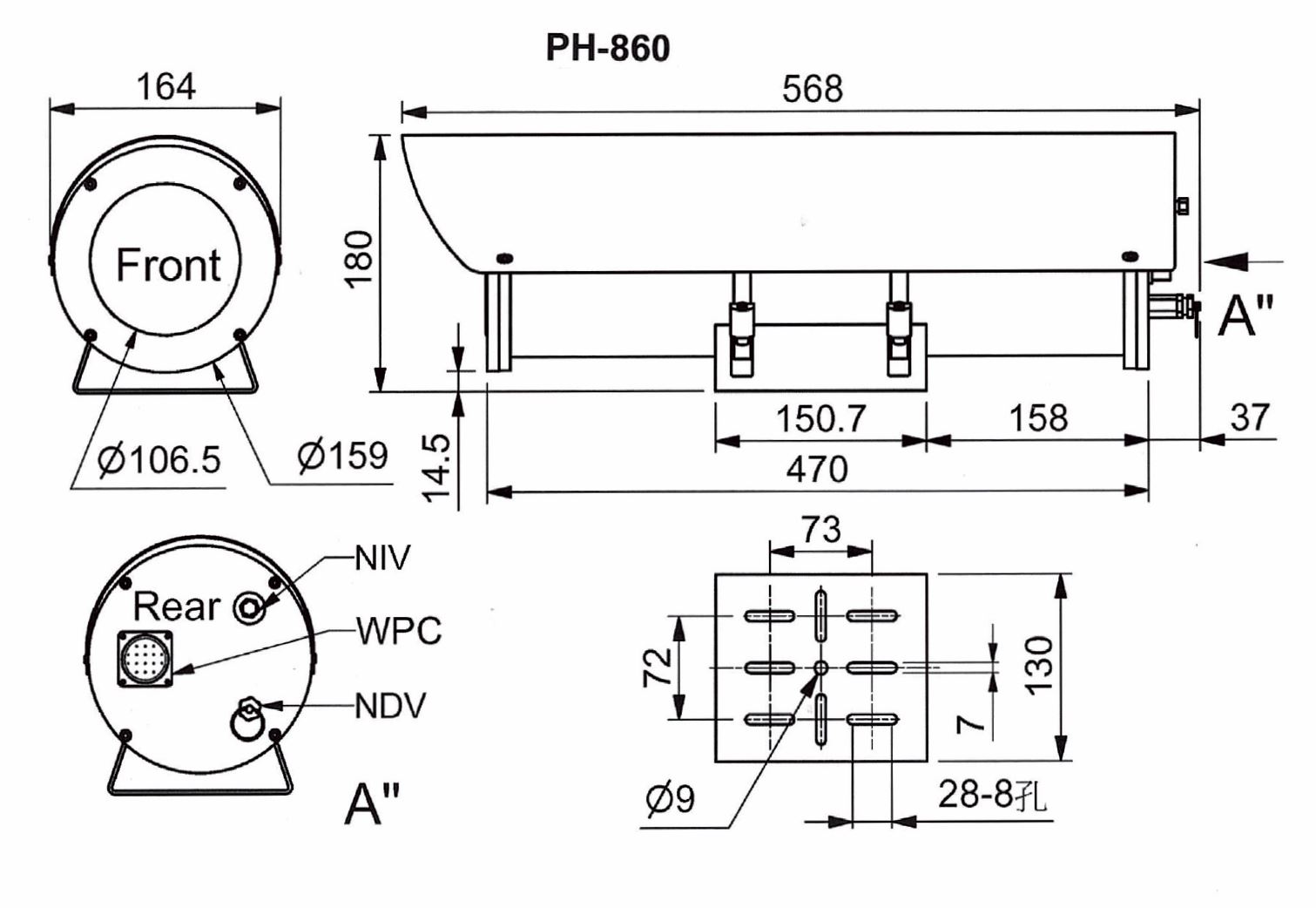

Specifications for PH-860 nitrogen pressurized camera housing

Material Stainless steel AIS316
IP rating IP68
Body length (with sunshield) 568mm
Internal Size HxWxL 90x90x430mm (Ø120mm)
Weight 13 kg
Window heater 15W PTC (self regulating)
Wiper (option) Self parking
 Voltage (wiper, Heater)  AC230V or AC110V
Cable entry Cable glands
Temperture -25° +65°

Options

  • Wiper

    The stainless steel housing can be delivered with a built-in wiper option.

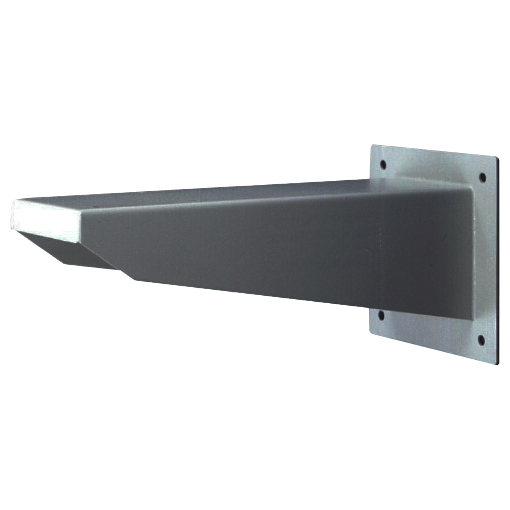

  • Wall bracket

    Stainless steel wall brackets available in different sizes to fit the length of the housing.

  • Swing head bracket

    Swing head as base for wall bracket made of stainless steel.

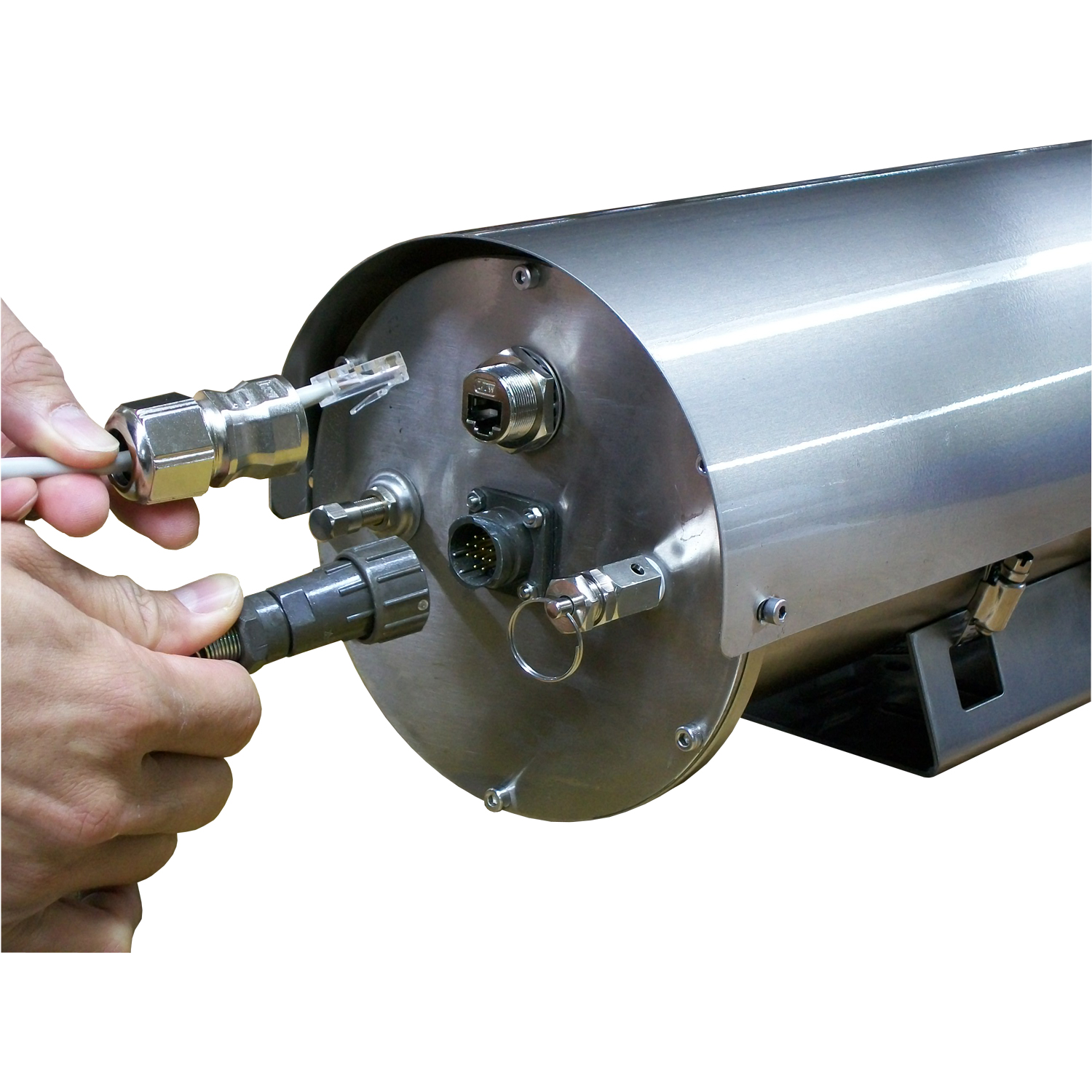

  • RJ45 network connector

    The housing can be delivered with RJ45 network connector.

  • Active heater

    Active heater with fan to keep housing temperature at a thermostatic setting.
