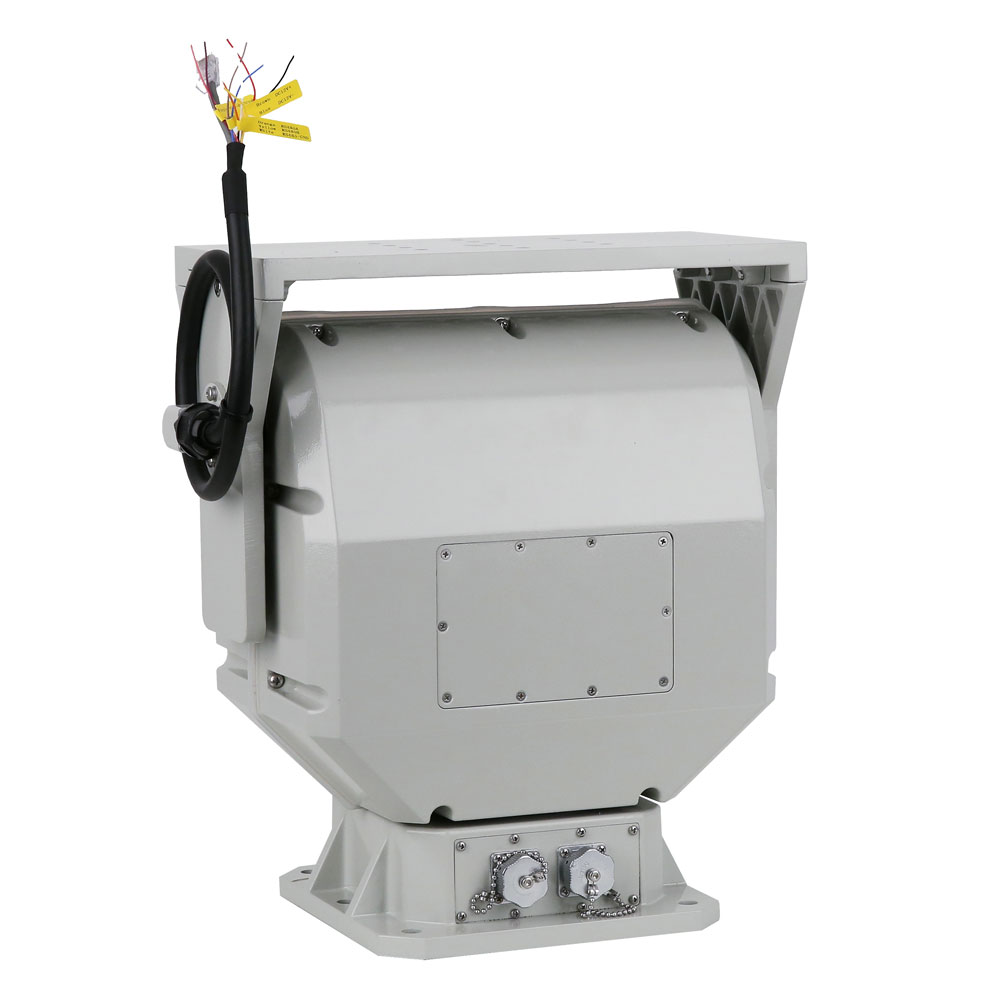

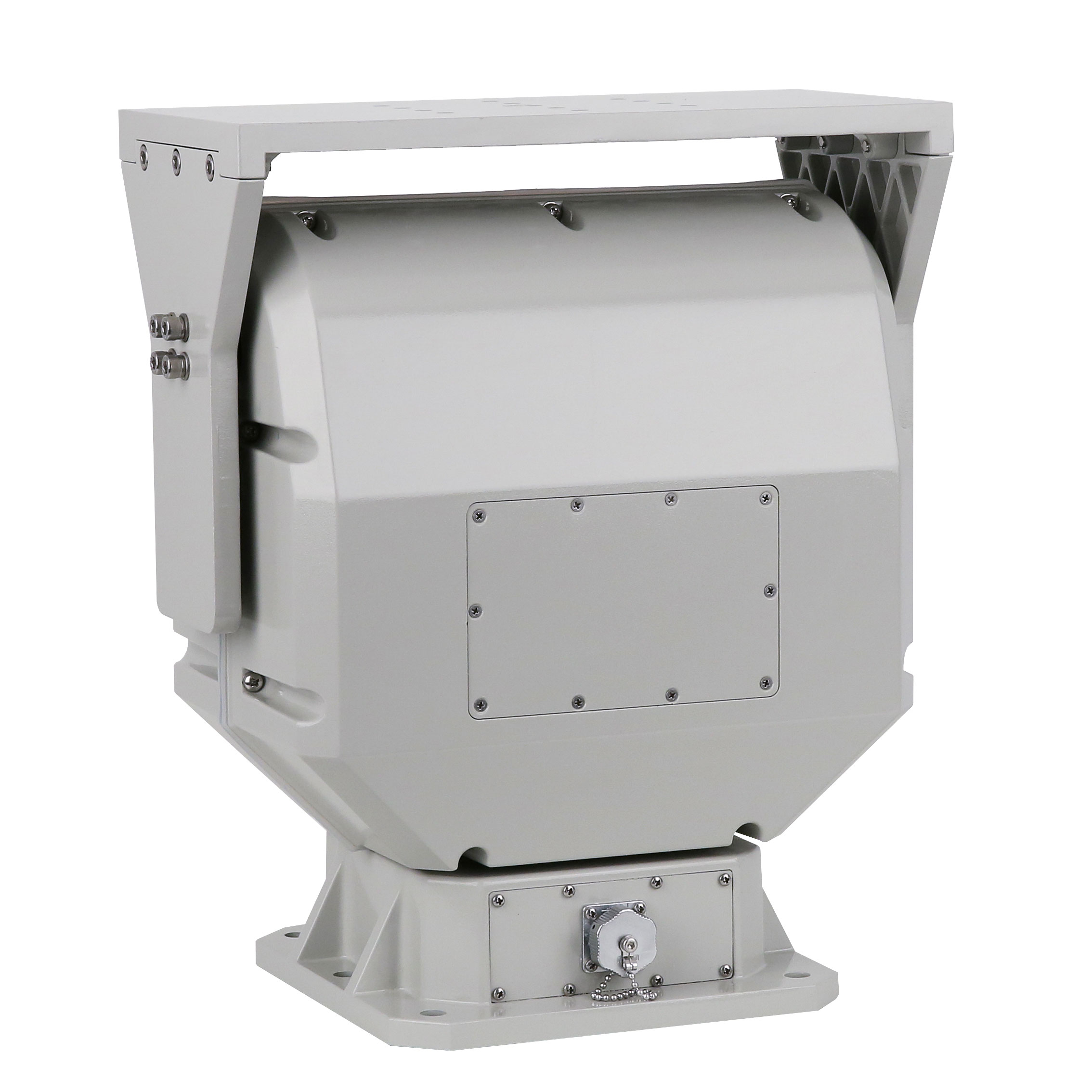

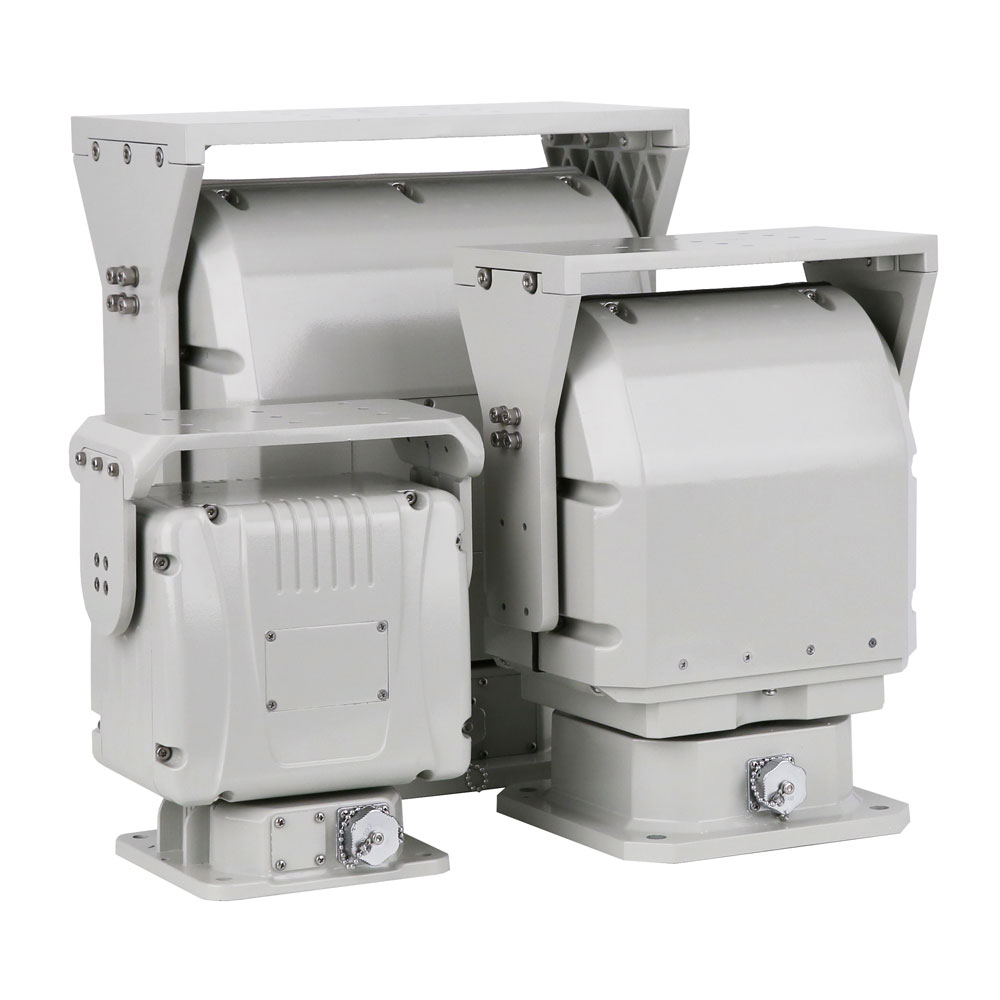

PT-2050 pan/tilt “50 kg load”

large pan tilt positioner
  • Load capacity up to 50 kg
  • RS-485/422 Pelco D serial control
  • With endstops or 360 endless rotation
  • Advanced positioning support - Angle readout
  • Optional GigE ethernet wiring, Motorized lens control, custom wiring

Description

The PT-2050 high load capacity pan/tilt is a large sized heavy duty pan/tilt unit with a load capacity of up to 50 kg. Many advanced control features, absolute position with angle set and angle readout, Pelco D extended protocol, 64 step variable speed and presets.

The pan/tilt is designed for heavy load and high precision <0,1°, with worm gears for self lock and wide range of speed steps.

The pan tilt units can be customized and custom wired to your application.

Specifications for PT-2050 pan/tilt

Material Aluminum
IP rating IP66
Load capacity Top mount up to 50 kg (side mount brackets optional)

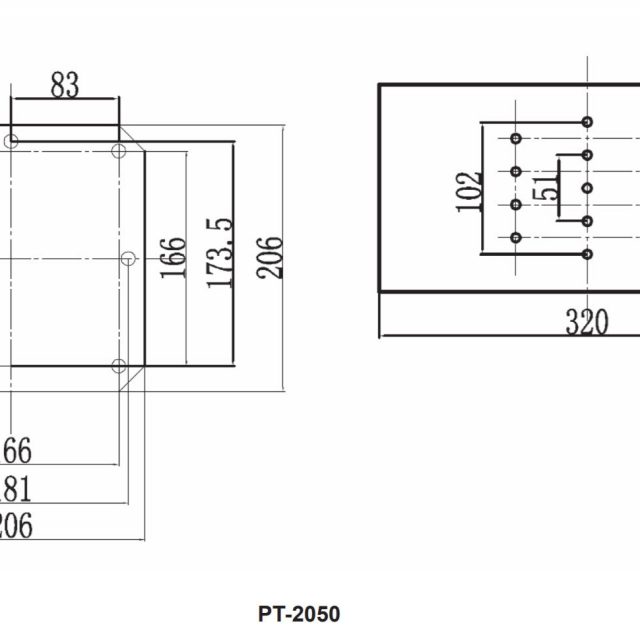

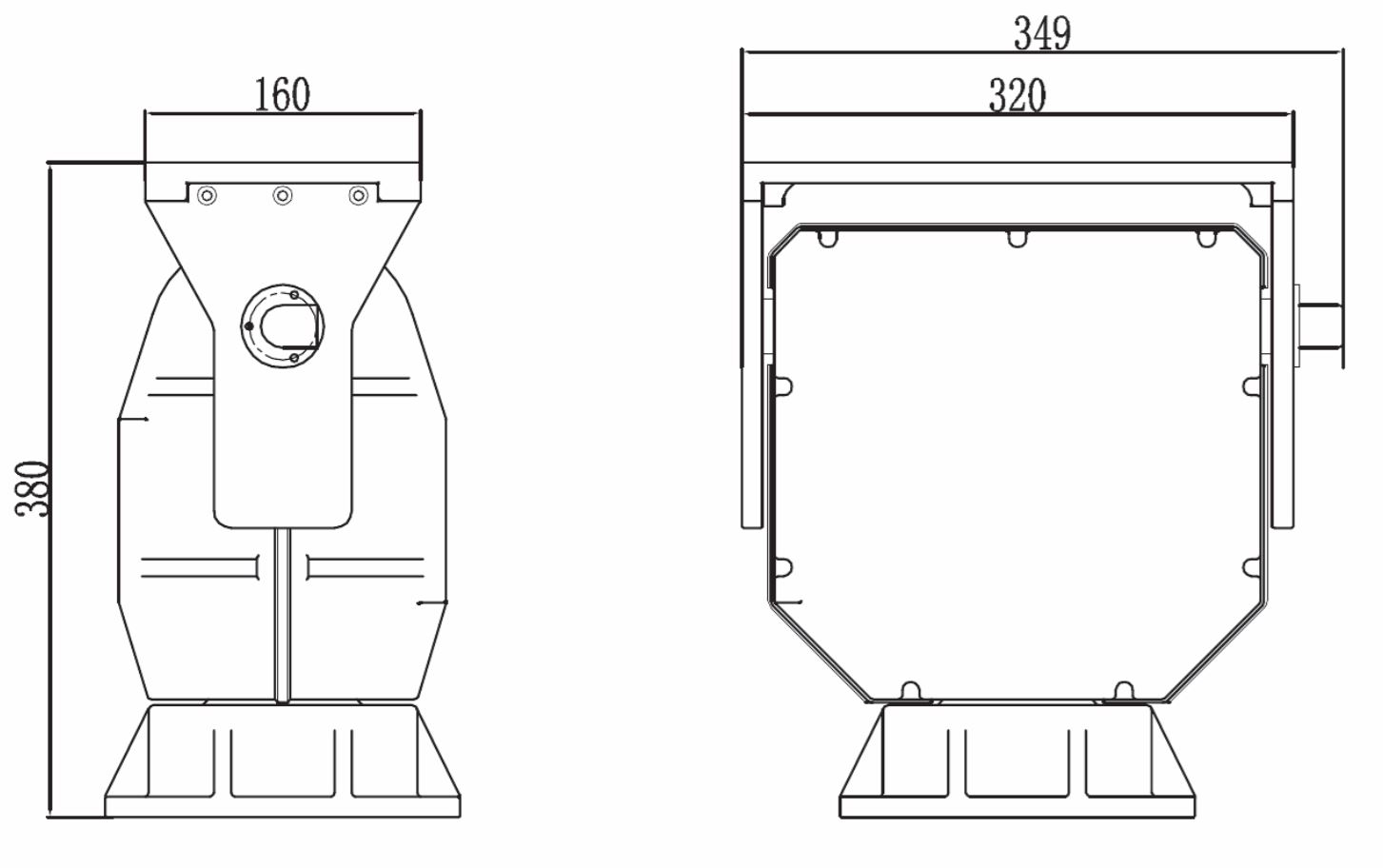

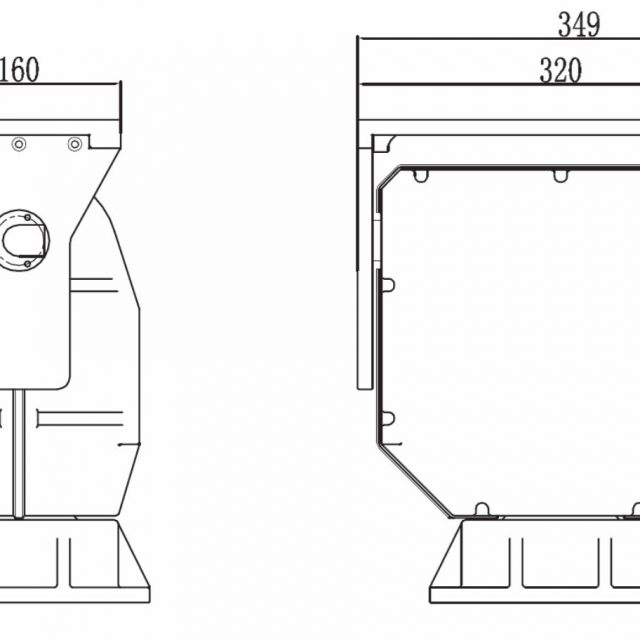

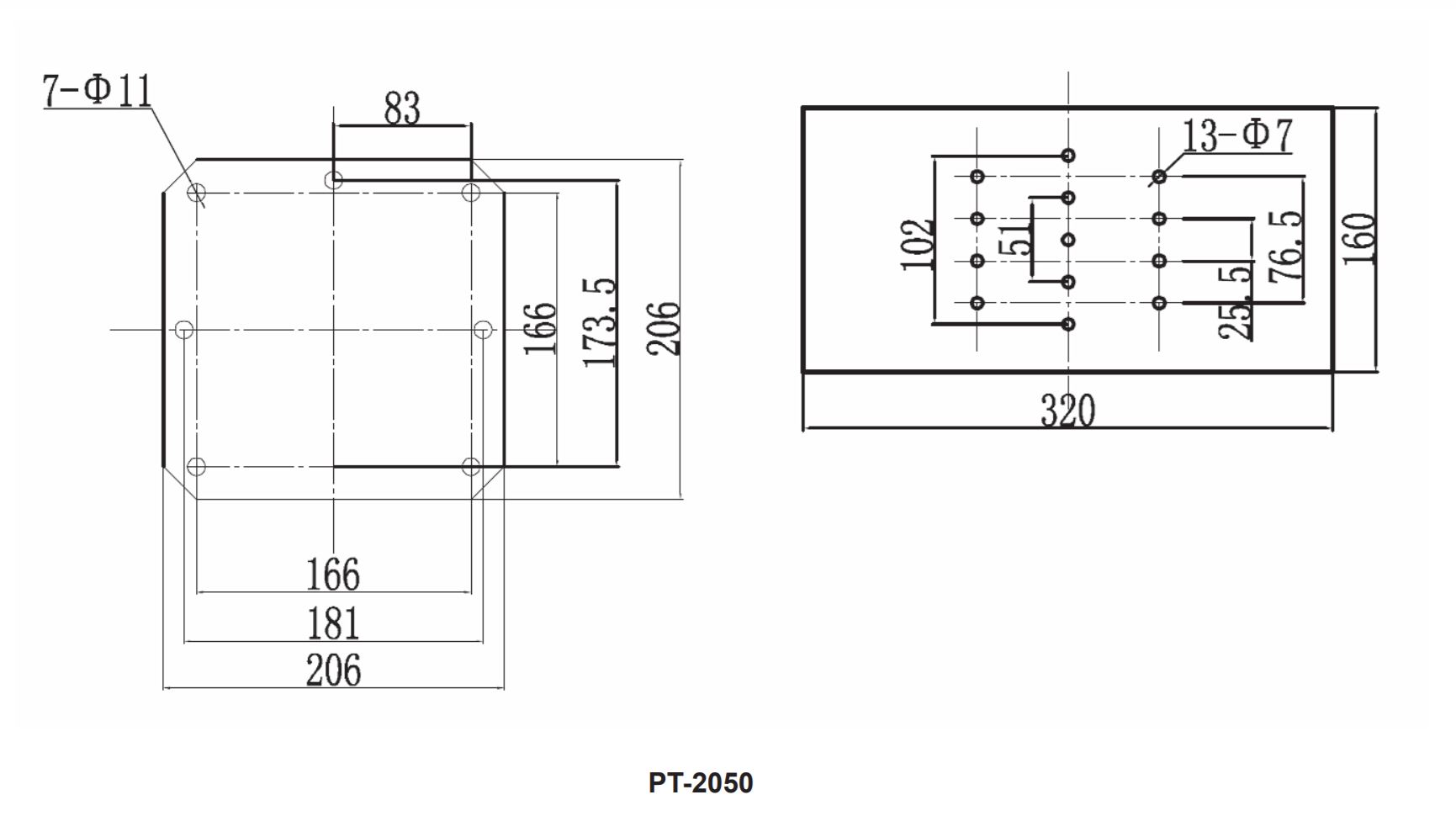

Size D206 x W320 x H380 mm (See drawing)
Weight 23 kg
Pan angle  0-340° with endstop (option: 0-360° or 360° continuous rotation)
Tilt angle -45° to +45° (option: custom angles up to -90° to +90°)
Pan speed 0,01 – 12°/sec (64 step)
Tilt speed 0,01 – 8°/sec (64 step)
Absolute position support  Yes (QUERY and SET commands for angle set and readout)
Self-test No self-test as default. (Can be enabled by a command)
Mechanical lash  <0,1°
Presets 100 presets
Preset accuracy <0,1°
Position repeatability <0,1°
Motor type Step motor
Gear type Worm gear
End-stop adjustable No, endstops are set when manufactured.

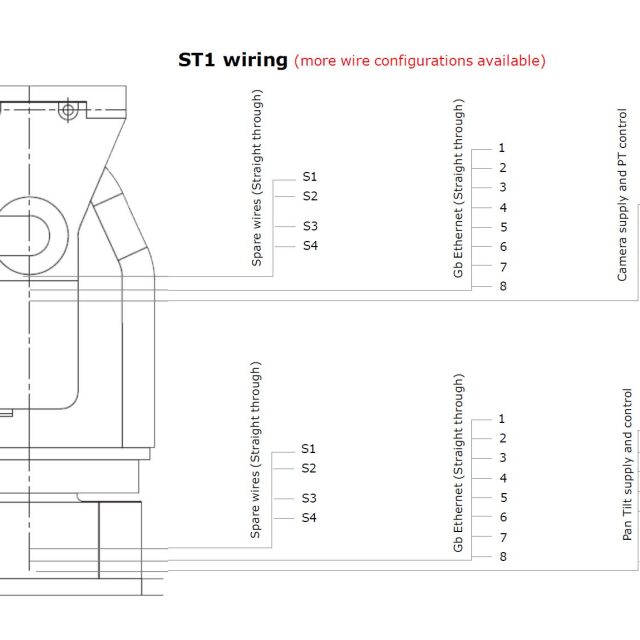

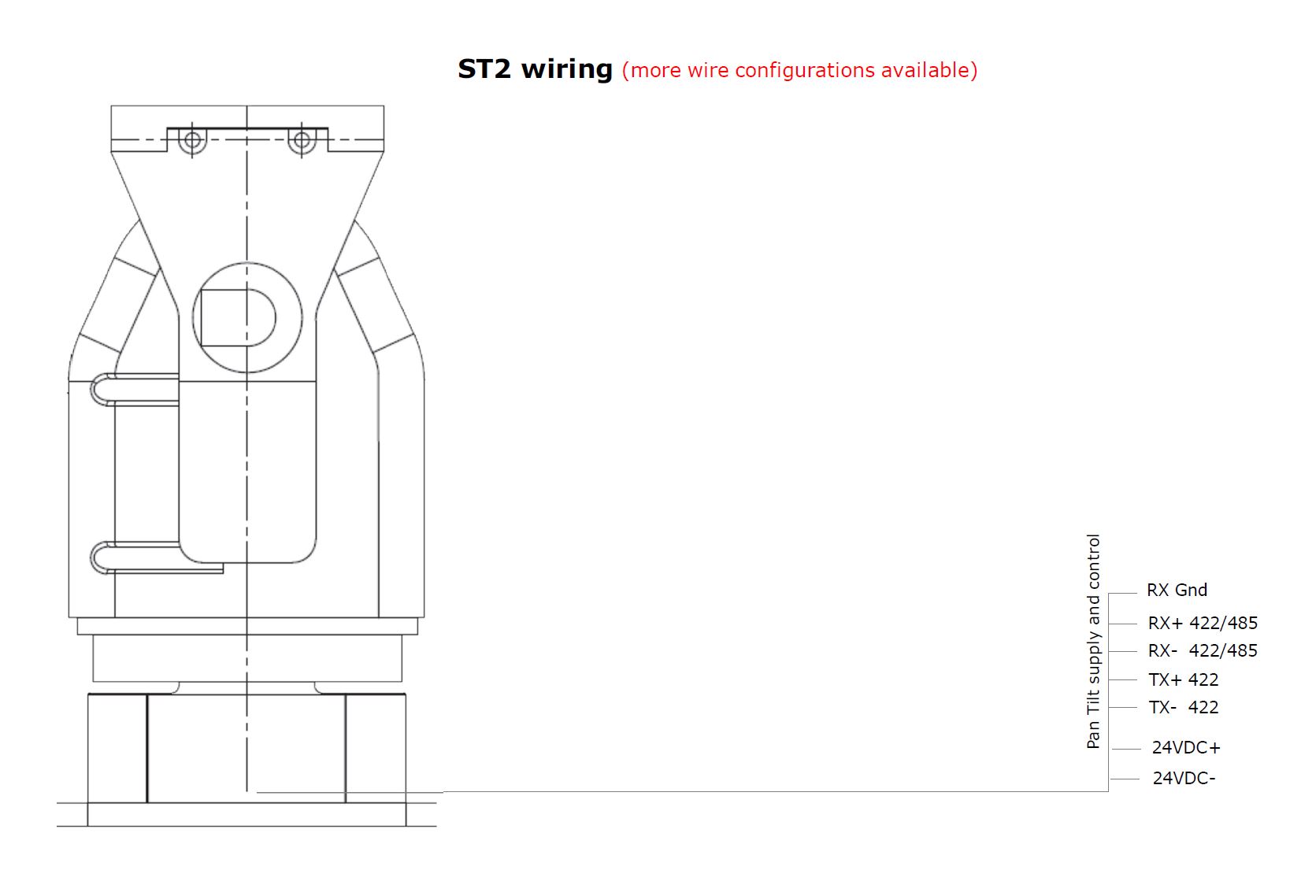

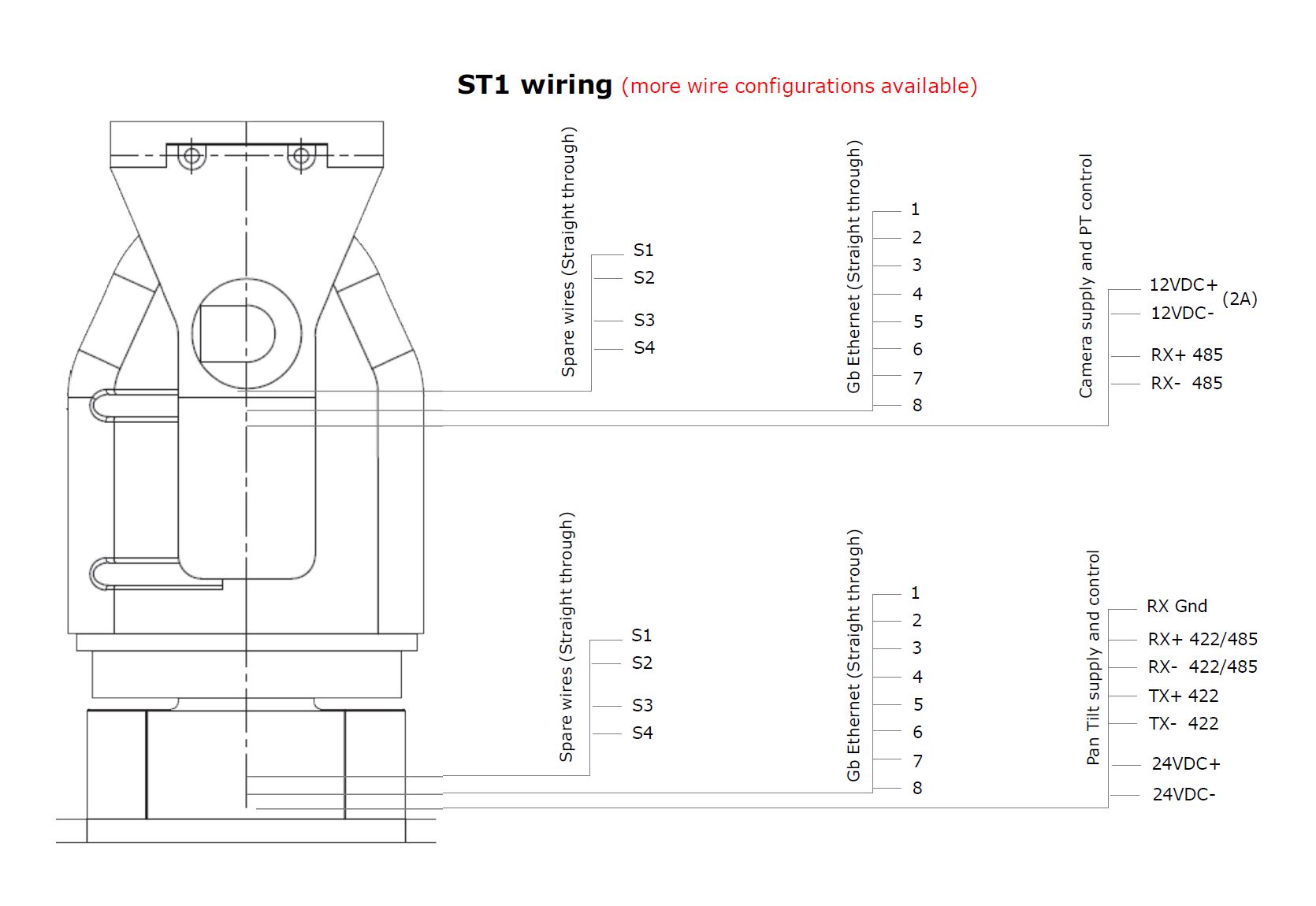

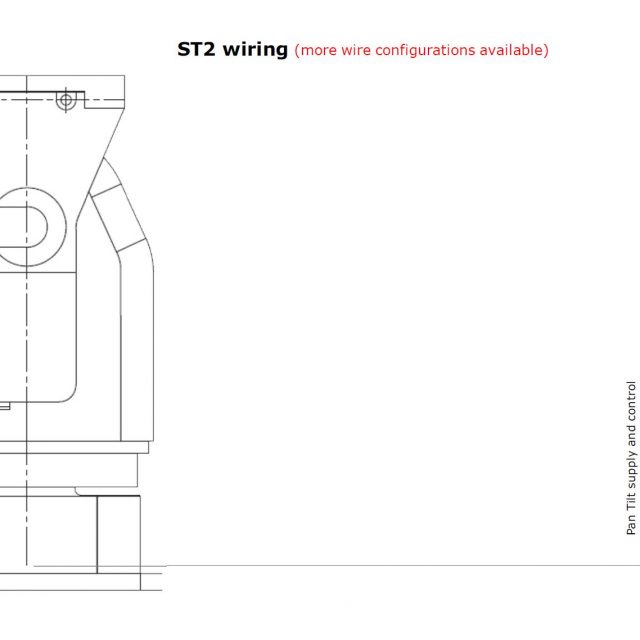

Wiring STx wiring or customized wiring (lens and aux control optional)
Interface  RS-485/422
Baud rate 2400, 4800, 9600, 19200 bps, N,8,1
Protocol Pelco D with extended commands
Address 1-256
Temperature range -10°C +65°C (option: -25°C +65°C)
Voltage supply  24 VDC
Power consumption   Standby 0,07A, Max load 4A

Options

  • 360 degree endless rotation

    Endless rotation option, for continuous 360 degrees rotation. High quality slip rings are installed to transmit power, video and control signals through the pan tilt unit. optionally GigE ethernet.

  • Wiring and connectors

    Custom wiring and connectors can be ordered, HDSDI or Network cable can be installed optionally.

  • counterweight for pan/tilt
    Counterweights

    Counterweights can be ordered for better balance in the load setup

  • Side mount

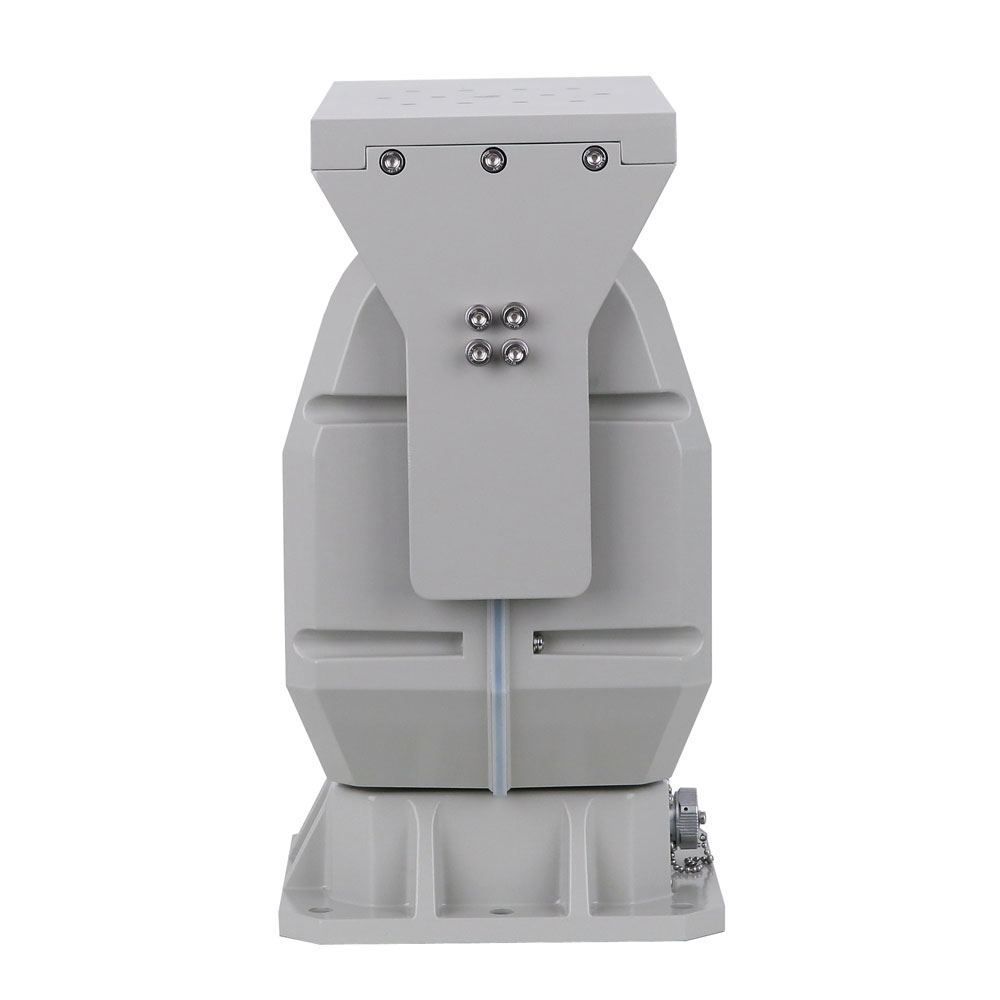

    Side mount brackets are available and can be mounted on each side of the pan tilt.

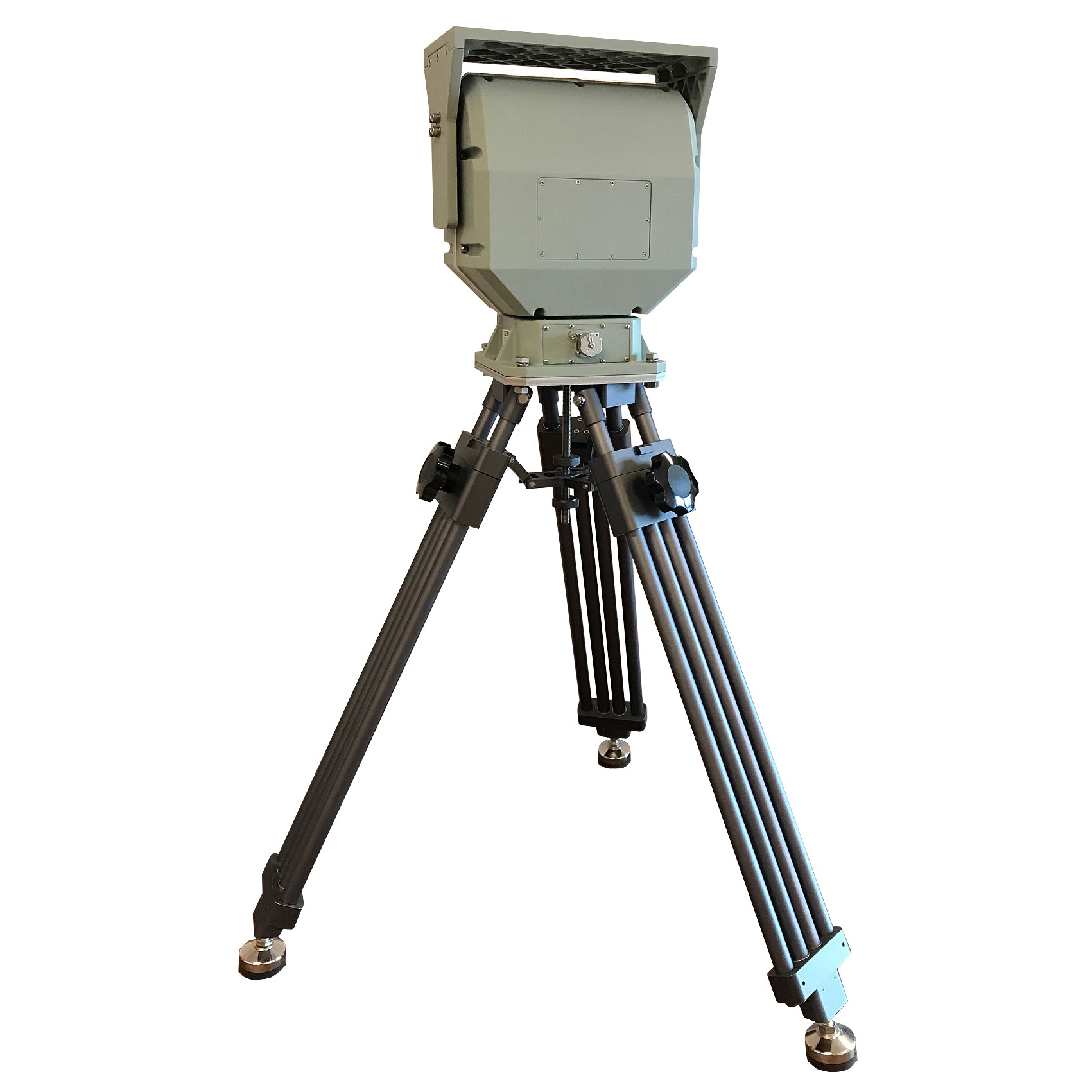

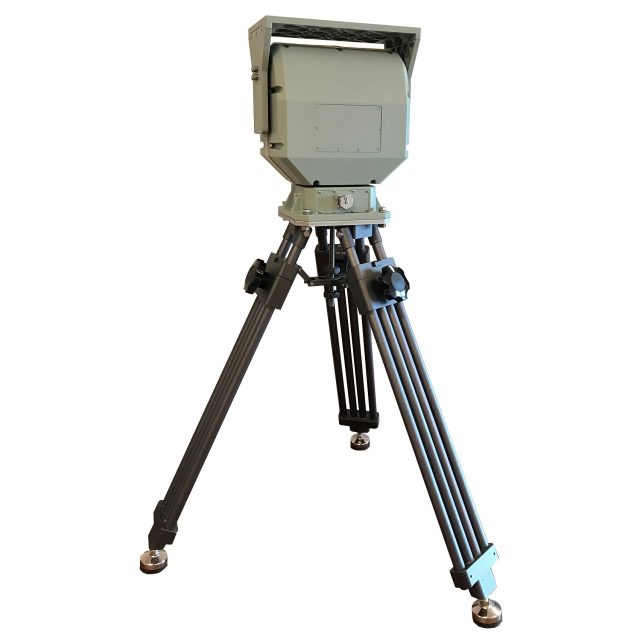

  • Heavy duty tripod
    Tripod

    Heavy duty tripod made specifically for the PT-2020 pan tilt
