PT-7700 pan tilt “60 kg load” (DISCONTINUED)
- Load capacity up to 60 kg (80 kg)
- RS-485 Pelco D serial control
- Made of Aluminum with stainless fittings
- Advanced positioning support
- Motorized lens control
Description
This product has been discontinued.

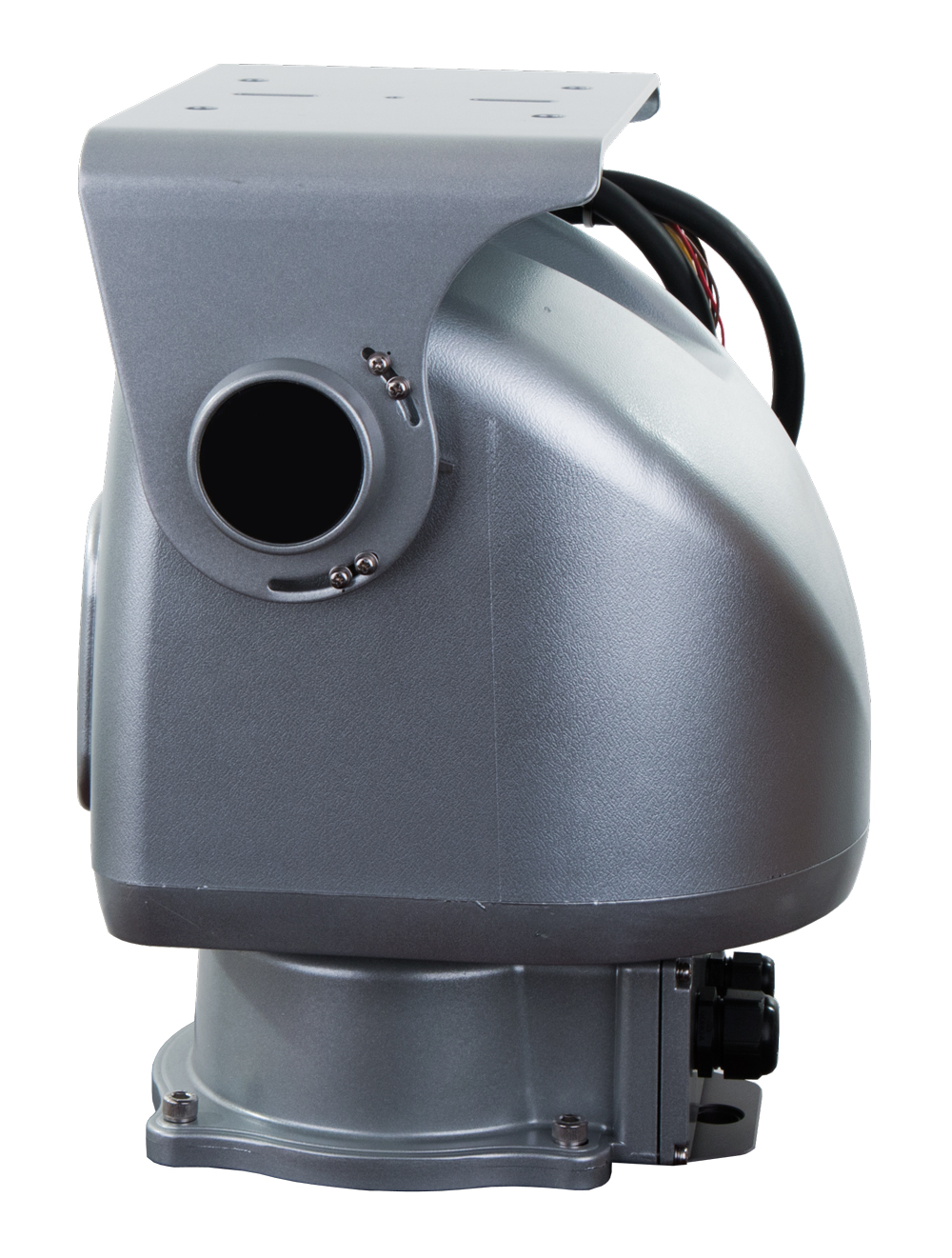

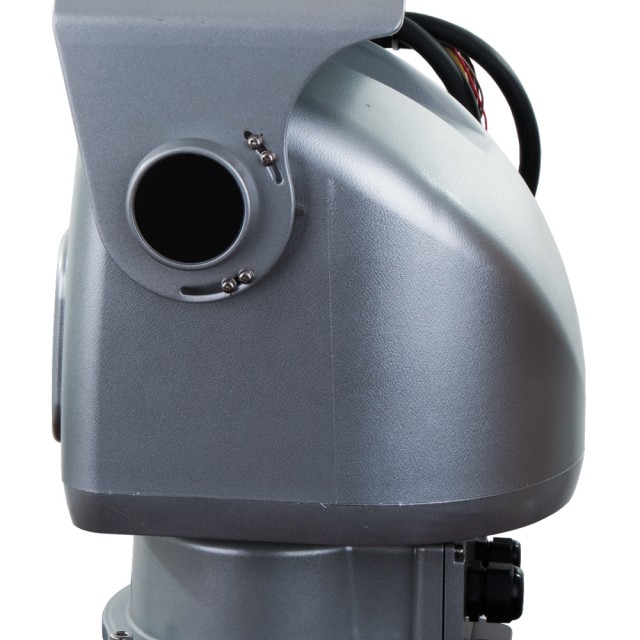

The PT-7700 pan tilt positioner is a large size pan tilt with a load capacity of up to 60 kg. Many advanced control features, absolute position, Pelco extended protocol, variable speed, presets and motorized lens control. The pan tilt is made of aluminum and all fittings are made of stainless steel. High precision unit with a back lash <0,1°.
The pan tilt is designed with DC motors and worm gears, a combination to get a high load capacity and a strong hold capacity.
Many options are available and the pan tilt can be custom made to your specific application.
You can find all our pan/tilt models listed here
Specifications for PT-7700 pan tilt positioner |
|
|---|---|
| Material | Aluminum / plast |
| IP rating | IP66 |
| Load capacity | Top mount 60 kg (80 kg optional) |

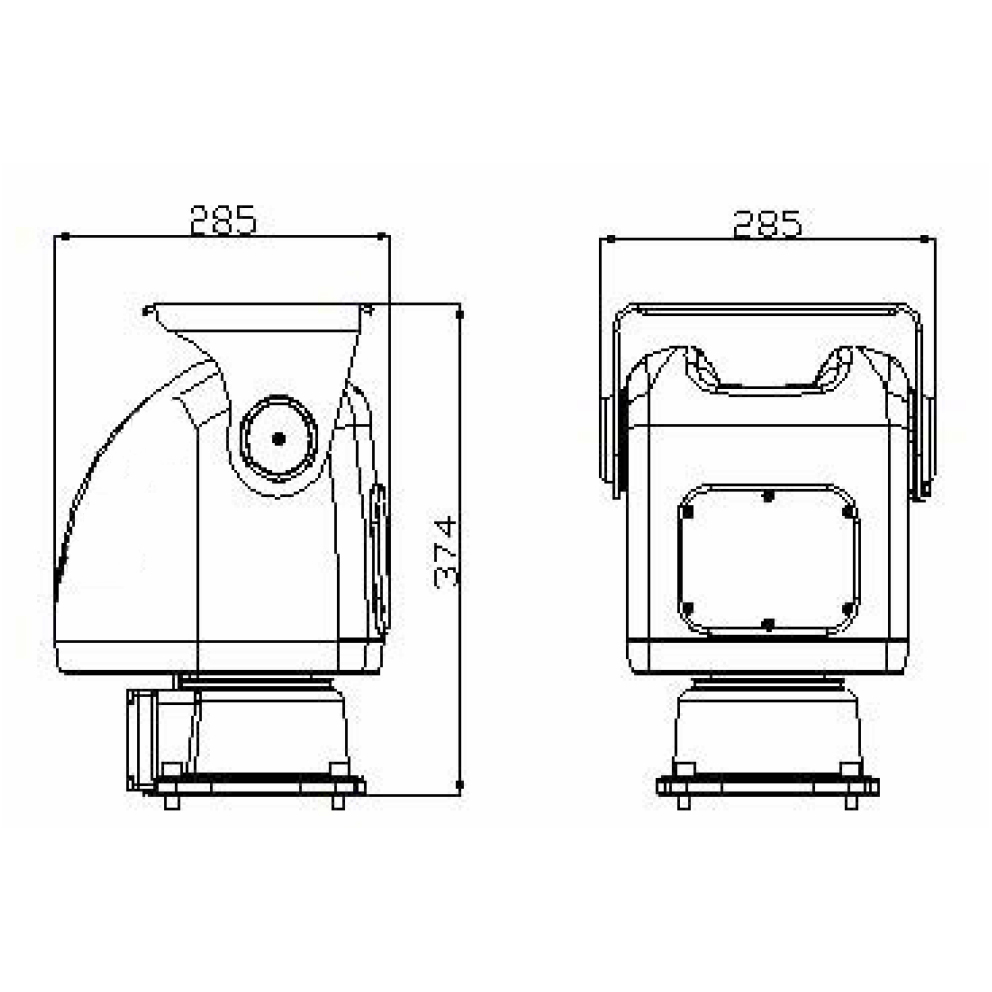

| Size (LxHxW) | 285 x 374 x 285 mm |
| Weight | 16 kg |
| Pan angle | 0-345° (Optional 360 degrees endless rotation) |
| Tilt angle | -90° to +30° |
| Pan speed | 0,1 – 60°/sec |
| Tilt speed | 0,1 – 30°/sec |
| Absolute position support | Yes |
| Electric position accuracy | |
| Mechanical lash | <0,1° |
| Presets | 256 presets |
| Preset accuracy | NA |
| Motor type | DC motor |
| Gear type | Worm gear |
| End-stop adjustable | By mechanical end stops |
| Interface | RS-485 |
| Baud rate | 2400, 4800, 9600, 19200 bps, N,8,1 |
| Protocol | Pelco D |
| Address | 1-256 |
| Temperature range | -10°C +65°C-(-25°C +65°C with optional heater) |
| Voltage supply | 24 VDC |
| Power consumption | Standby 3W, Max load 200W |
| Motorized lens control | Yes (4 wire lens control and presets voltages |
| Aux control | NA |
| Video cable | Yes (HDSDI cable optional) |
| Network cable | Optionally |
Options
-
360 degree endless rotation
Endless rotation option, for continuous 360 degrees rotation. High quality slip rings are installed to transmit power, video and control signals through the pan tilt unit.
-
Wiring and connectors

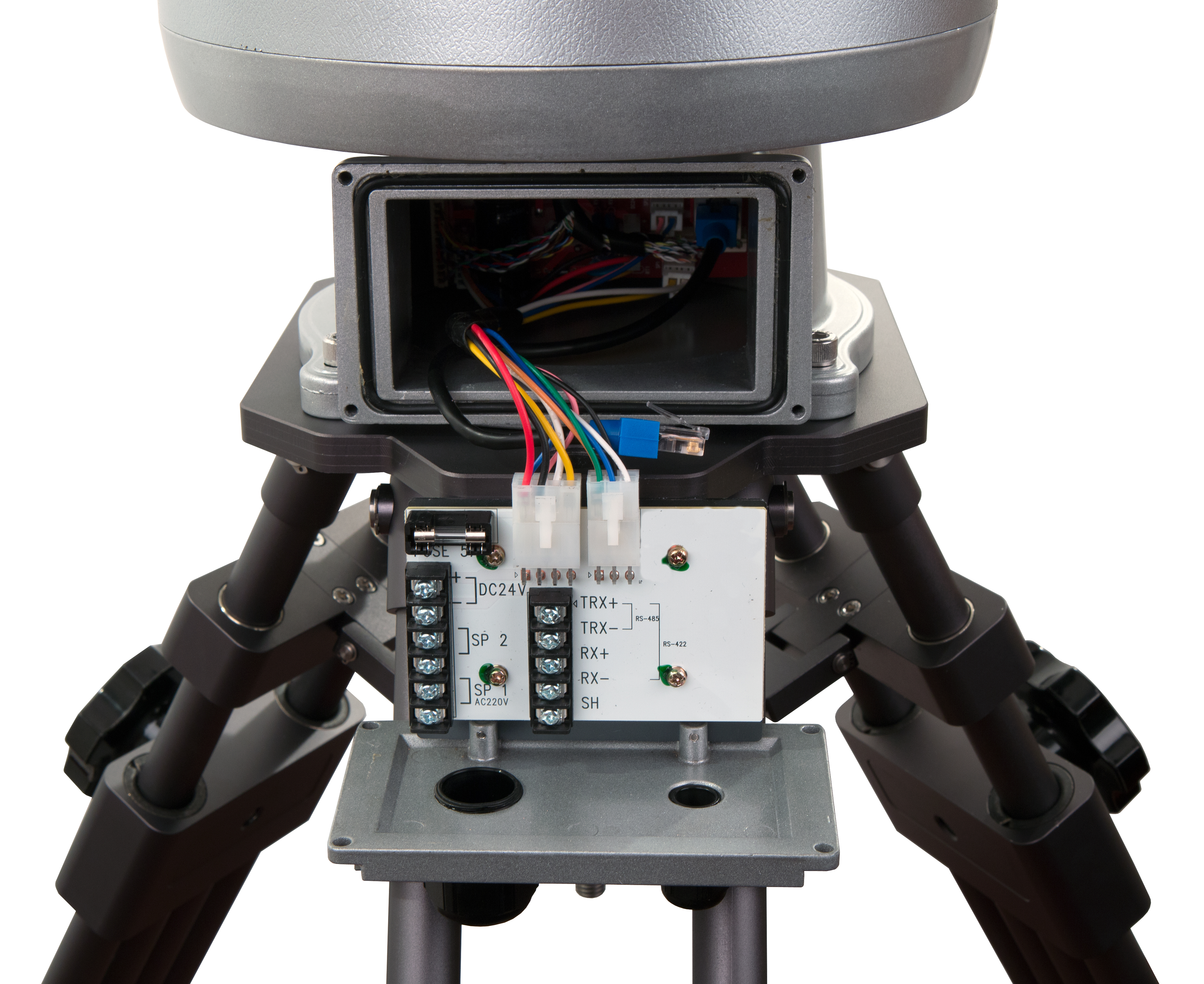

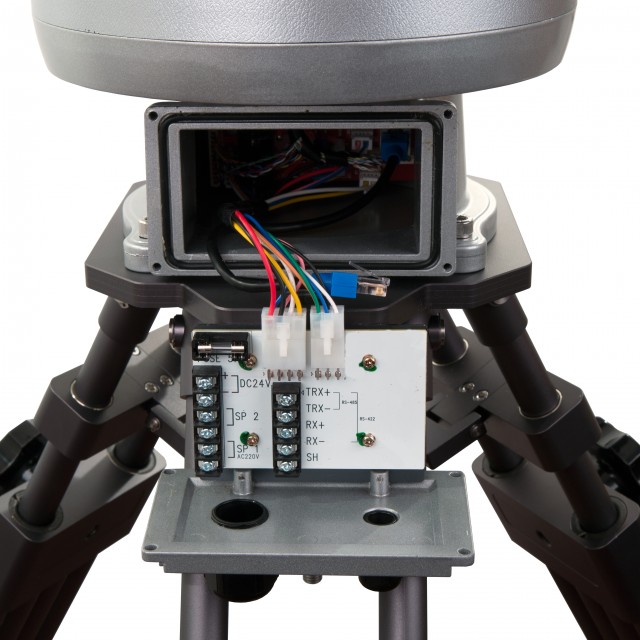

Custom wiring and connectors can be ordered, HDSDI or Network cable can be installed optionally.
-
Tripod

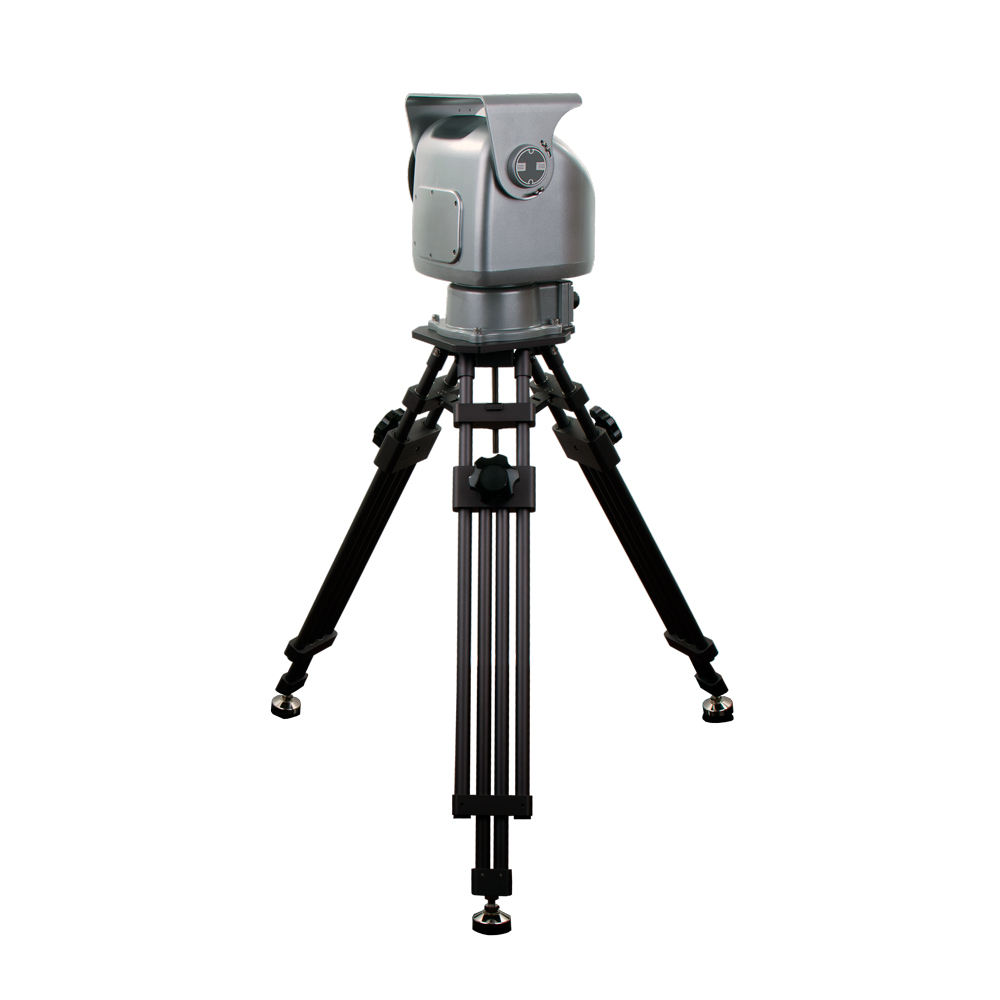

Heavy duty tripod made specifically for the PT-7700 pan tilt
-
Heater
Internal heater to extend the temperture range to -25°C
Videos
This is a demo video of the PT-3002, but the PT-7700 pan tilt positioner are controlled in the exact same way:
